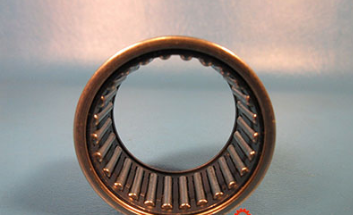

IKO Number: TA 5030Z

Mass (Ref.): 161 g

Assembled inner ring: IRT 4530

Fw: 50 mm

D: 62 mm

C: 30 mm

Shaft dia. h6max.: 50 mm

Shaft dia. h6min.: 49.984 mm

Housing bore dia. J7max.: 62.018 mm

Housing bore dia. J7min.: 61.988 mm

Dynamic, C: 59.5 kN

Static, C0: 114 kN

Allowable rotational speed: 6500 rpm
